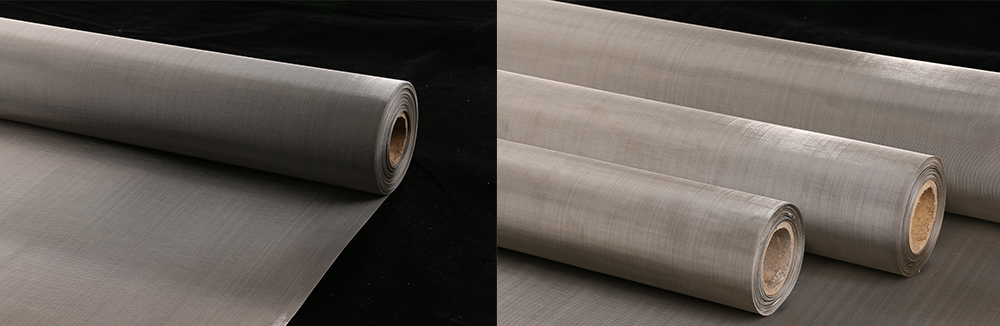

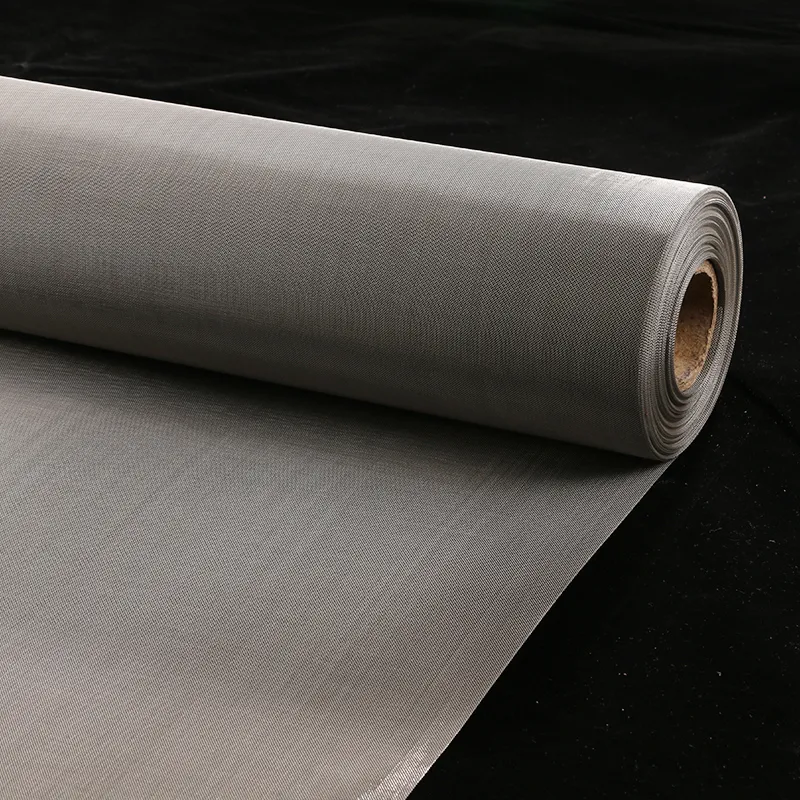

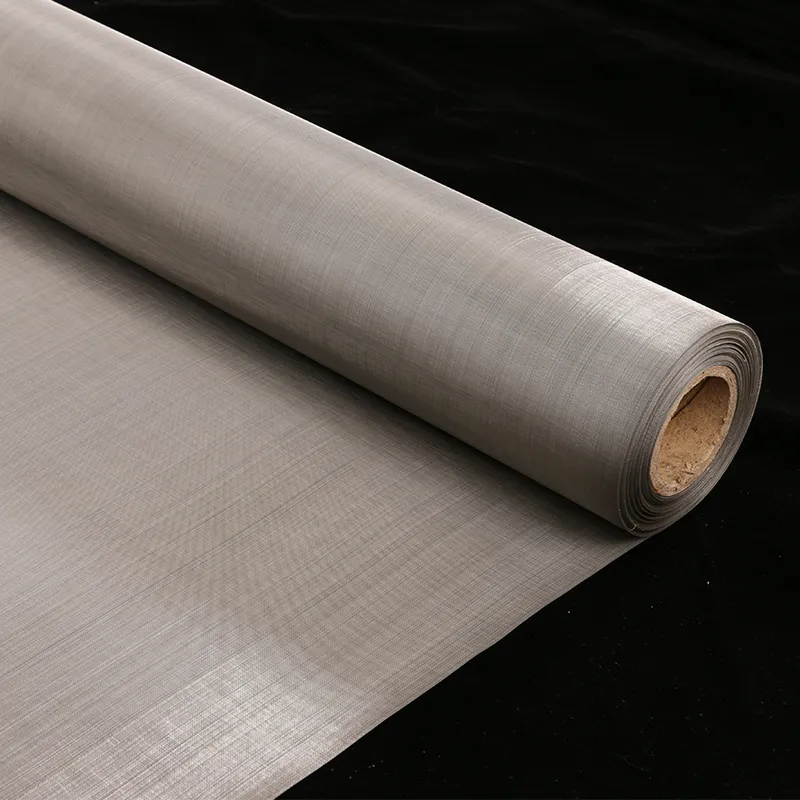

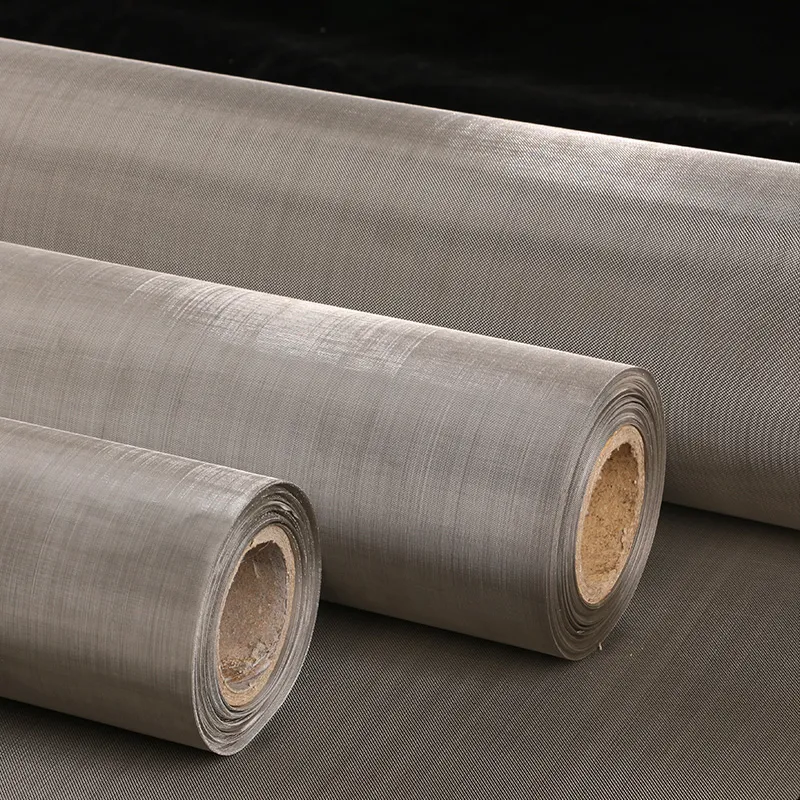

Nickel Wire Mesh

Nickel wire mesh, also known as nickel braided mesh or nickel wire cloth, is a metal product made of nickel material with a purity of over 99%. Nickel materials are mainly divided into four specifications: N2, N4, N6, N8, and others. They have good corrosion resistance, acid and alkali resistance, excellent conductivity, and large ductility. They are mainly used for screening, medium separation, and electronic product production in strong acid and alkali environments.

Inquire Now

Product Description

Describe

The mesh size, wire diameter, and hole size of nickel wire woven mesh vary greatly. Moreover, it can be cut into various shapes, such as round wire mesh discs, short woven mesh filter discs, metal mesh filter caps, filter tubes, and nickel wire mesh suitable for various environments.

Weaving process

There are five techniques: plain weave, twill weave, plain weave Dutch weave, twill Dutch weave, and reverse Dutch weave.

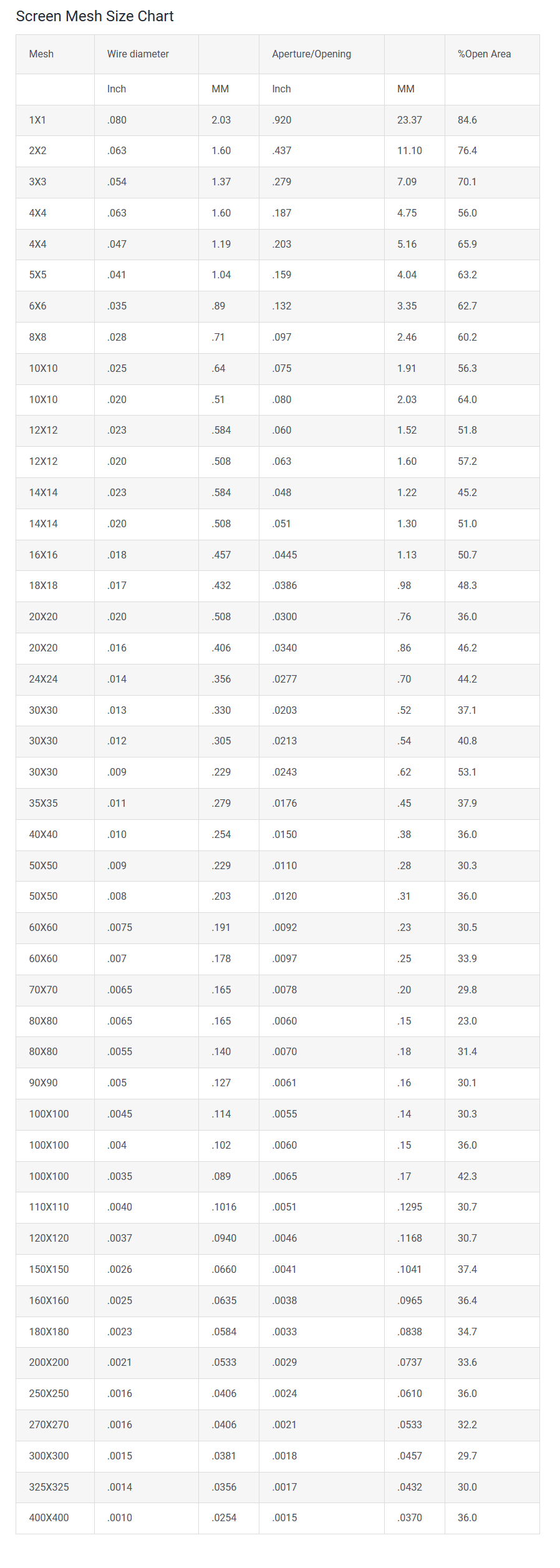

Nickel mesh is made of nickel wire woven through warp and weft, with square mesh holes. The main specifications include 20 mesh, 30 mesh, 40 mesh, 60 mesh, 150 mesh, 300mesh,etc.Thewirediameterrangeis0.03to0.4mm.

Nickel Wire Mesh
